Featured Applications

  • Haul Road Crossings

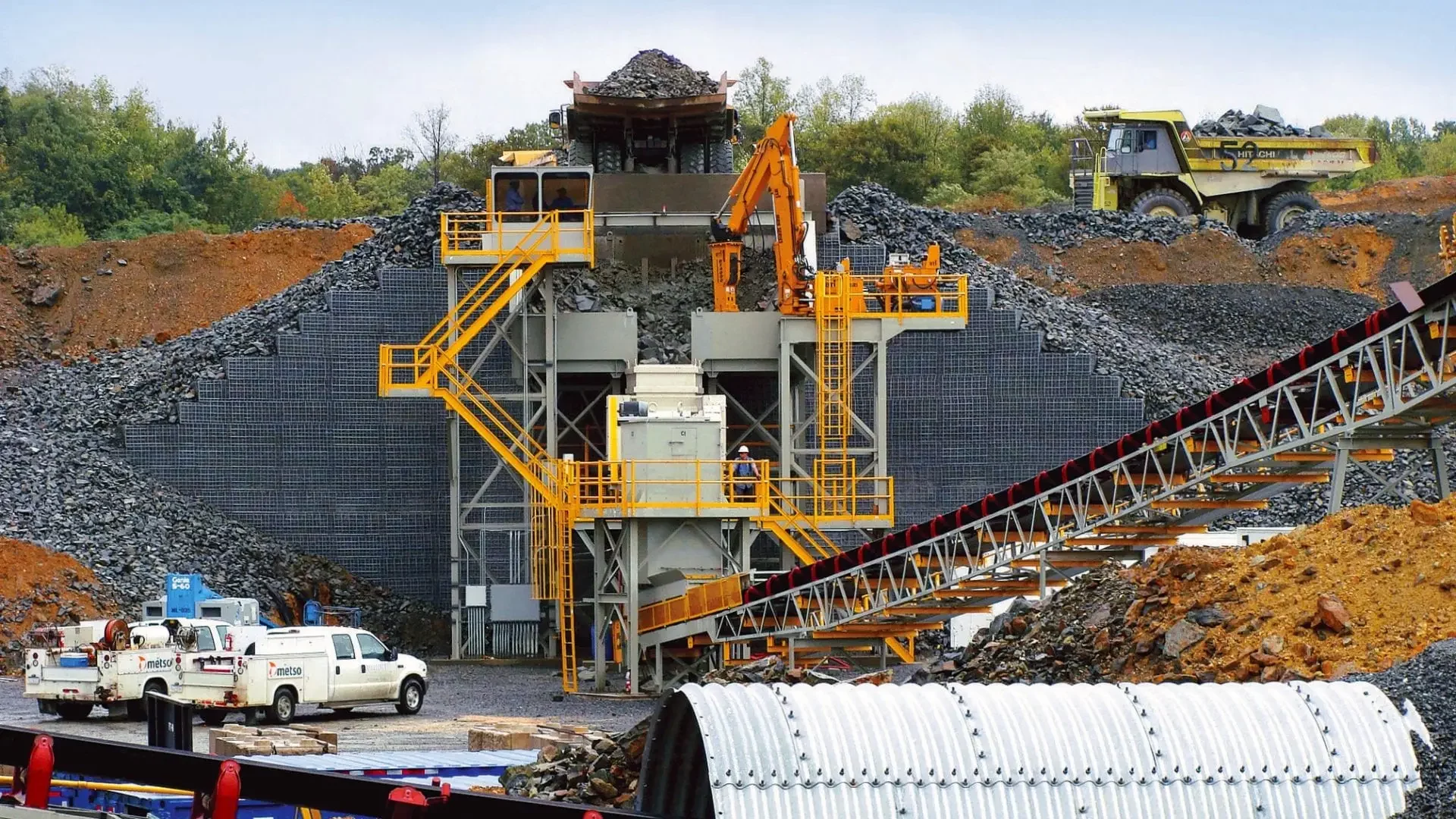

  • Crusher Walls and Ramps
  • Geotextile Reinforced Soil (GRS) Bridges
  • Mine Shafts, Vent Raises and Escape Ways
  • Stockpile and Escape Tunnels
  • Bridges

Featured Product

THE EDGE Four-Flange Structural Liner

Revolutionizing tunnel liner and shaft liner construction methods and application ranges.
Image of THE EDGE Four-Flange Structural Liner
Recommended for :
  • Mine Shafts
  • Vent Raises
  • Escape-Way
  • Portals and Canopies
  • Ground Support Structures
  • Relining of Existing Structures
  • Road or Rail Underpasses
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Protection Structures
  • 10 times stiffer and 5 times stronger than traditional steel liner plate
  • Handles extreme loadings
  • Accelerated assembly, easier fitting of plates
  • Smaller crews needed, lower installed costs
  • Added safety, structures can be built from one side
  • Easy to ship and install for remote locations
  • Long-lasting and virtually maintenance-free
  • Spans can exceed 25 m (82')
  • Corrugation profile of 381 mm (15") pitch and 140 mm (5.5") depth
  • Available in traditional and custom shapes
  • Available uncoated or with hot-dip galvanized or Best•Kote Polymer coatings
  • Suitable for field-applied coatings
  • Grout coupling sizes and placement to suit site conditions
  • Custom fittings available
  • Gaskets allow for leak-resistant structures
  • Lower cost tank storage option
  • Structures can be dismantled and removed
Recommended for :
  • Mine Shafts
  • Vent Raises
  • Escape-Way
  • Portals and Canopies
  • Ground Support Structures
  • Relining of Existing Structures
  • Road or Rail Underpasses
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Protection Structures
