Products

Save money on material, shipping and assembly on mine site infrastructure.

By design, our custom mine site infrastructure solutions are easy to ship and install with minimal equipment and local labour, making them ideal for remote locations in the mining industry sector, especially meeting the diverse requirements and harsh climates of arctic regions.

Structural Plate Infrastructure

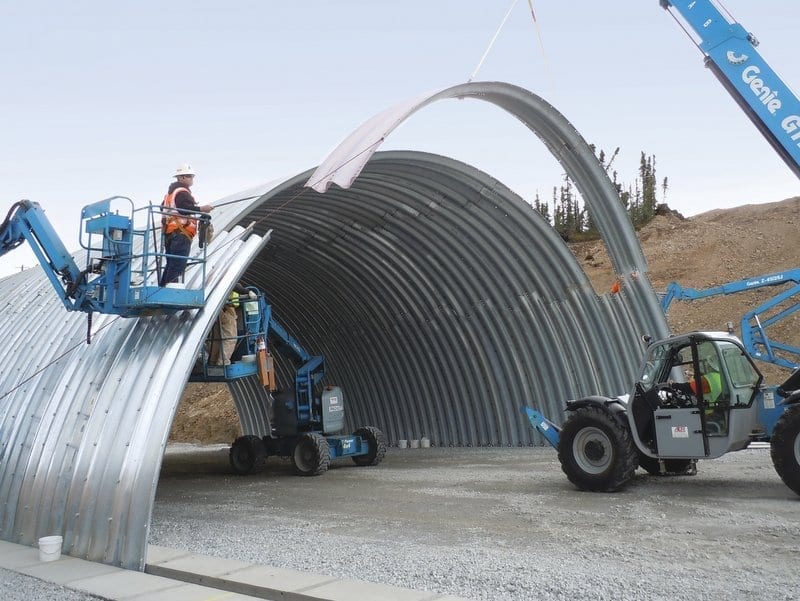

Ultra-Cor Structural Steel Plate

Recommended for larger applications.
Image of Ultra-Cor Structural Steel Plate
Recommended for :
  • Structural Plate Arches and Bridges
  • Grade Separations
  • Road or Rail Underpasses
  • Stream Crossings
  • Box Culverts
  • Heavy Haul Road Arches

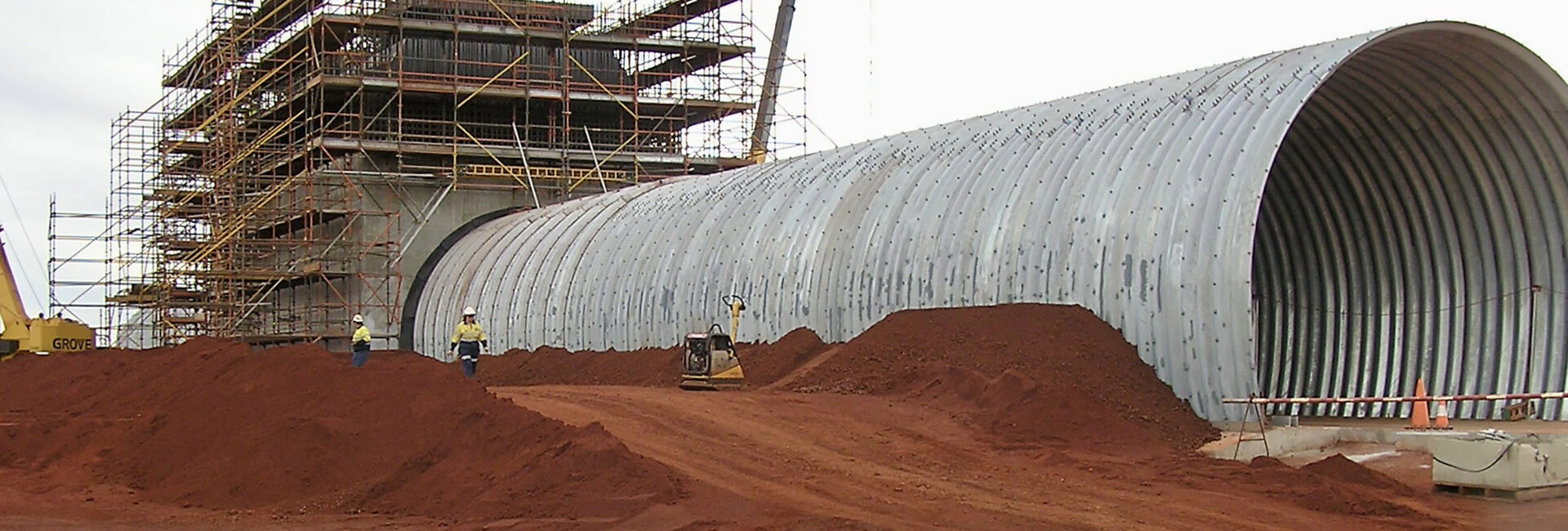

  • Stockpile Tunnels
  • Portals and Canopies
  • The strongest corrugated steel plate available
  • Handles extreme loadings
  • Spans can exceed 35 m (115′)
  • Stockpile heights can reach greater than 30 m (98′)
  • Corrugation profile of 500 mm (19.6″) pitch × 237 mm (9.5″) depth
  • Available in: Box Culverts and Standard, Low, Medium or High Profile Arches
  • Easy to ship and install for remote locations
  • Long-lasting and virtually maintenance-free
  • Bottomless designs are more environmentally friendly
  • Available with a variety of footing and headwall/wingwall options
  • Available with tested and approved protective coating systems
  • Designed and manufactured to National Standards at our third-party quality-certified facility ISO 9001-2015
Recommended for :
  • Structural Plate Arches and Bridges
  • Grade Separations
  • Road or Rail Underpasses
  • Stream Crossings
  • Box Culverts
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Portals and Canopies

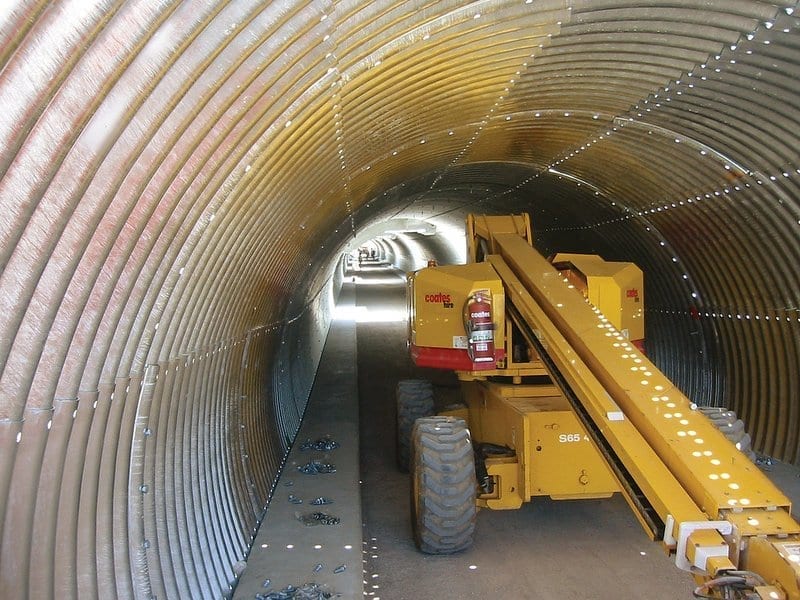

Super-Cor Structural Steel Plate

Ideal for medium-sized applications.
Image of Super-Cor Structural Steel Plate
Recommended for :
  • Structural Plate Arches and Bridges
  • Grade Separations
  • Road or Rail Underpasses
  • Stream Crossings
  • Box Culverts
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Storage Structures
  • Portals and Canopies
  • Premium, hot-dip-galvanized, deep-corrugated structural steel plate for medium-sized applications
  • Revolutionary alternative to conventional bridges
  • Handles extreme loadings
  • Spans can reach up to 25 m (82′)
  • Corrugation profile of 381 mm (15″) pitch x 140 mm (5.5″) depth
  • Available in: Box Structures; Standard, Low, Medium or High Profile Arches; Rounds and Ellipses
  • Easy to ship and install for remote locations
  • Long-lasting and virtually maintenance-free
  • Bottomless designs are more environmentally friendly
  • Can reline older structures
  • Available with a variety of footing and headwall/wingwall options
  • Available with tested and approved protective coating systems
  • Designed and manufactured to National Standards at our third-party quality-certified facility ISO 9001-2015
Recommended for :
  • Structural Plate Arches and Bridges
  • Grade Separations
  • Road or Rail Underpasses
  • Stream Crossings
  • Box Culverts
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Storage Structures
  • Portals and Canopies

THE EDGE Four-Flange Structural Liner

Revolutionizing ​tunnel liner ​construction methods and application ranges.
Image of THE EDGE Four-Flange Structural Liner
Recommended for :
  • Mine Shafts
  • Vent Raises
  • Escape-Way
  • Portals and Canopies
  • Ground Support Structures
  • Relining of Existing Structures
  • Road or Rail Underpasses
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Protection Structures
  • 10 times stiffer and 5 times stronger than traditional steel liner plate
  • Handles extreme loadings
  • Accelerated assembly, easier fitting of plates
  • Smaller crews needed, lower installed costs
  • Added safety, structures can be built from one side
  • Easy to ship and install for remote locations
  • Long-lasting and virtually maintenance-free
  • Spans can exceed 25 m (82′)
  • Corrugation profile of 381 mm (15″) pitch and 140 mm (5.5″) depth
  • Available in traditional and custom shapes
  • Available uncoated or with hot-dip galvanized or Best•Kote Polymer coatings
  • Suitable for field-applied coatings
  • Grout coupling sizes and placement to suit site conditions
  • Custom fittings
  • Gaskets allow for leak-resistant structures
  • Lower cost tank storage option
  • Structures can be dismantled and removed
Recommended for :
  • Mine Shafts
  • Vent Raises
  • Escape-Way
  • Portals and Canopies
  • Ground Support Structures
  • Relining of Existing Structures
  • Road or Rail Underpasses
  • Heavy Haul Road Arches
  • Stockpile Tunnels
  • Protection Structures

Bolt-A-Plate Structural Steel Plate

Recommended for smaller applications.
Image of Bolt-A-Plate Structural Steel Plate
Recommended for :
  • Structural Plate Arches and Bridges
  • Grade Separations
  • Road or Rail Underpasses
  • Stream Crossings and Fish Passages
  • Heavy Haul Road Arches
  • Stockpile and Escape Tunnels
  • Portals and Canopies
  • Storage Structures
  • Utilidor Systems
  • Conveyor Tunnels and Overcasts
  • Industry-standard, hot-dip-galvanized, corrugated structural steel plate for smaller applications
  • Spans of 1.5 m (5′) to to 10 m (40′)
  • Corrugation profile of 152.4 mm (6″) pitch x 51 mm (2″) depth
  • Available in: Standard, Low or High Profile Arches; Rounds; Ellipses and Box Structures
  • Easy to ship and install for remote locations
  • Long-lasting and virtually maintenance-free
  • Bottomless designs are more environmentally friendly
  • Available with a variety of footing and headwall/wingwall options
  • Can reline older structures
  • Available with tested and approved protective coating systems
  • Designed and manufactured to National Standards at our third-party quality-certified facility ISO 9001-2015
Recommended for :
  • Structural Plate Arches and Bridges
  • Grade Separations
  • Road or Rail Underpasses
  • Stream Crossings and Fish Passages
  • Heavy Haul Road Arches
  • Stockpile and Escape Tunnels
  • Portals and Canopies
  • Storage Structures
  • Utilidor Systems
  • Conveyor Tunnels and Overcasts

Dur-A-Span Structural Aluminum Plate

For corrosion/abrasion resistance.
Image of Dur-A-Span Structural Aluminum Plate
Recommended for :
  • Saltwater and Aggressive Applications
  • Stream Crossings and Fish Passages
  • Culverts
  • Road Salt and Other Storage Structures
  • Corrosion/abrasion-resistant solid aluminum alloy structural plate ideal for saltwater and aggressive soil environments
  • Lightweight and strong
  • Spans can reach up to 12.2 m (40′)
  • Corrugation profile of 230 mm (9″) pitch x 64 mm (2.5″) depth
  • Available in: Box Culverts, Standard or High Profile Arches, Rounds, Horizontal Ellipses, Pipe Arches and Pear Shaped
  • Made from corrosion/abrasion-resistant aluminum
  • Recommended for sites with corrosive soil and/or water
  • Performance proven in over 15,000 installations internationally
  • Bottomless designs are more environmentally friendly
  • Can reline older structures
  • Designed and manufactured to National Standards at our third-party quality-certified facility ISO 9001-2015
Recommended for :
  • Saltwater and Aggressive Applications
  • Stream Crossings and Fish Passages
  • Culverts
  • Road Salt and Other Storage Structures

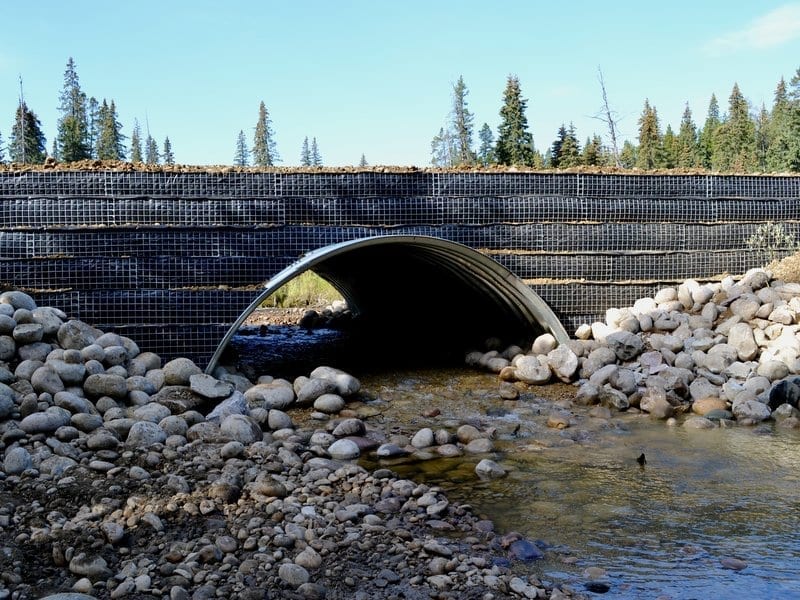

AIL Geotextile Reinforced Soil (GRS) Bridges

AIL’s innovative Geotextile Reinforced Soil (GRS) technology puts the dirt to work in ​soil bridge​ solutions.
Image of AIL Geotextile Reinforced Soil (GRS) Bridges
Recommended for :
  • Resource Road Crossings
  • Stream Crossings
  • Fish Passages
  • Transfers loads from metal arch to surrounding GRS mass
  • Fish and wildlife friendly
  • Maintains existing stream bed
  • No need for concrete footings or pile foundations
  • Light weight and ships economically to site
  • Rapid installation
  • Allows for wide range of backfills
  • Ideal for remote locations
  • Low maintenance costs
  • Scour and piping resistant
  • Improved user safety
  • Supports heavy loads (L-100 logging trucks, CL-800 vehicles)
  • Spans up to 8.3 m
Recommended for :
  • Resource Road Crossings
  • Stream Crossings
  • Fish Passages

Pipe & Drainage

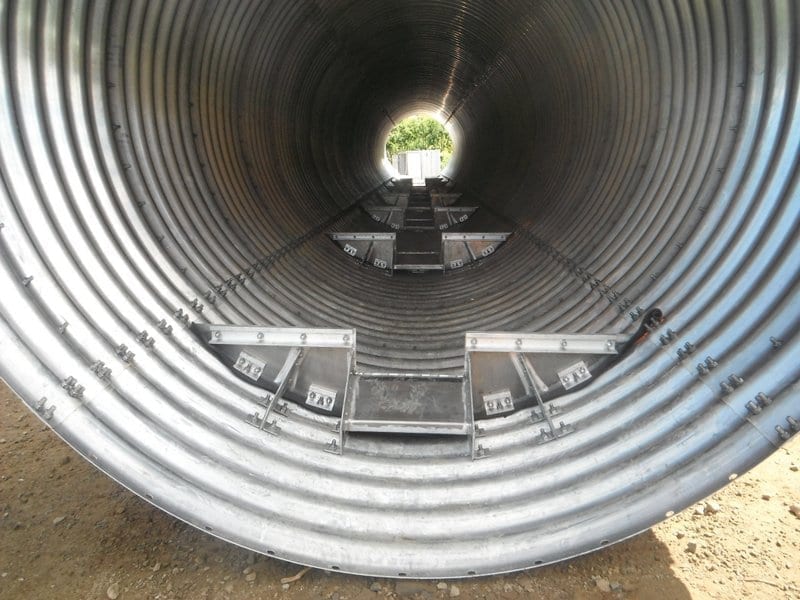

Corrugated Steel Pipe

Get the optimum combination of strength, flexibility and performance in galvanized culvert pipe.
Image of Corrugated Steel Pipe
Recommended for :
  • Culverts
  • Drainage Systems
  • Stormwater Systems
  • Fish Passages
  • Conveyor Tunnels and Overcasts
  • Ventilation Systems
  • Utilidor Systems
  • Economical, strong, lightweight and easy to install
  • Variety of sizes, lengths, thicknesses and materials
  • Complete line of standard and specialized fittings and accessories
  • Available in Round Pipe or Pipe Arch Profiles
  • Galvanized, Aluminized Type 2 or Polymer-Laminated coatings
  • Can be used to reline existing systems
  • Full engineering support and field service
  • Approved to CSA Standard G401-07
Recommended for :
  • Culverts
  • Drainage Systems
  • Stormwater Systems
  • Fish Passages
  • Conveyor Tunnels and Overcasts
  • Ventilation Systems
  • Utilidor Systems

Prefabricated Bridges

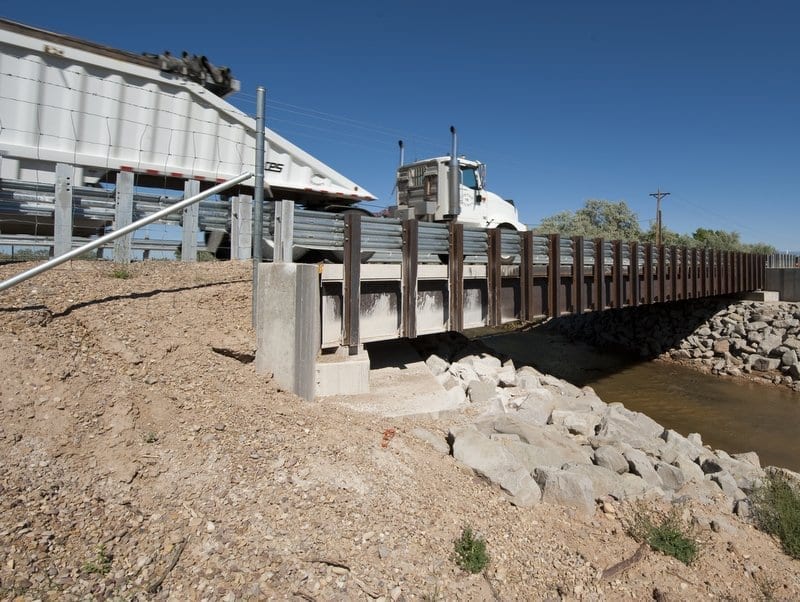

Prefabricated Bridges

Custom modular bridge solutions for permanent or temporary applications.
Image of Prefabricated Bridges
Recommended for :
  • Stream Crossings
  • Road or Rail Overpasses
  • Detour Bridges
  • Utility Corridors
  • Permanent or temporary applications, like portable detour bridges
  • Strong: able to withstand heavy-duty loading
  • Spans up to 73.2 m (240')
  • Widths up to 11 m (36'), 2.4 m (8') wide modules are typical
  • 10.8 cm (4.25") corrugated steel deck is standard
  • Decking options; poured or precast concrete, asphalt, grating, wood or gravel
  • Weathering, Galvanized or Painted Steel
  • Bearing plates and pads
  • Curb or rail system
  • Excellent fish passage solutions
  • Sidewalk and utility corridors can be added to enhance use
Recommended for :
  • Stream Crossings
  • Road or Rail Overpasses
  • Detour Bridges
  • Utility Corridors

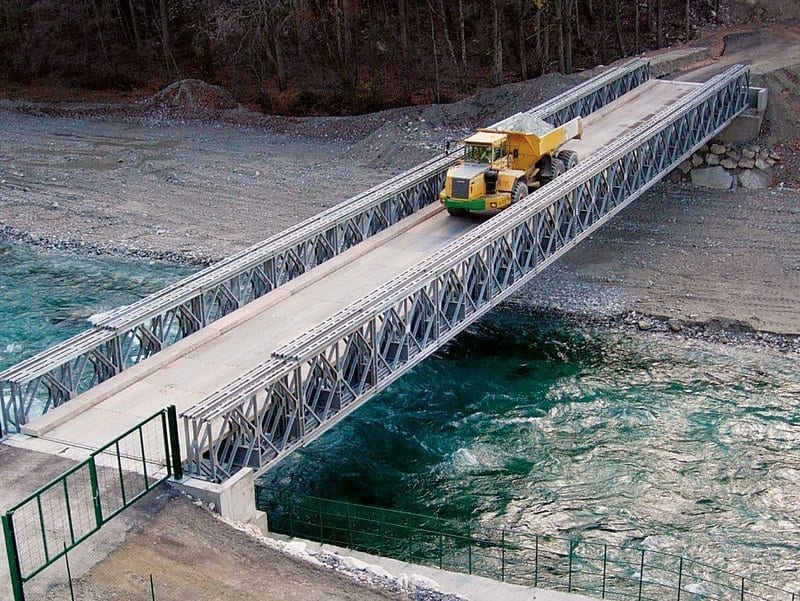

Algonquin Modular Panel Bridges

Robust and reusable ‘quick-build’ bridges for sale or rent.
Image of Algonquin Modular Panel Bridges
Recommended for :
  • Stream Crossings
  • Road or Rail Overpasses
  • Detour Bridges
  • Utility Corridors
  • Inventoried components ready to ship and install quickly by local crews
  • Can be launched from one side without lifting equipment
  • Permanent or temporary applications, like detour bridges
  • Easy to dismantle, store and reconfigure for multiple uses
  • Strong: able to withstand heavy-duty loading
  • Variety of widths, spans up to 90 m (295')
  • Galvanized finish
  • Variety of decking options; Bearing plates and pads
  • Excellent fish passage solutions
  • Sidewalks and utility corridors can be added to enhance use
Recommended for :
  • Stream Crossings
  • Road or Rail Overpasses
  • Detour Bridges
  • Utility Corridors

Abutments & Retaining Walls

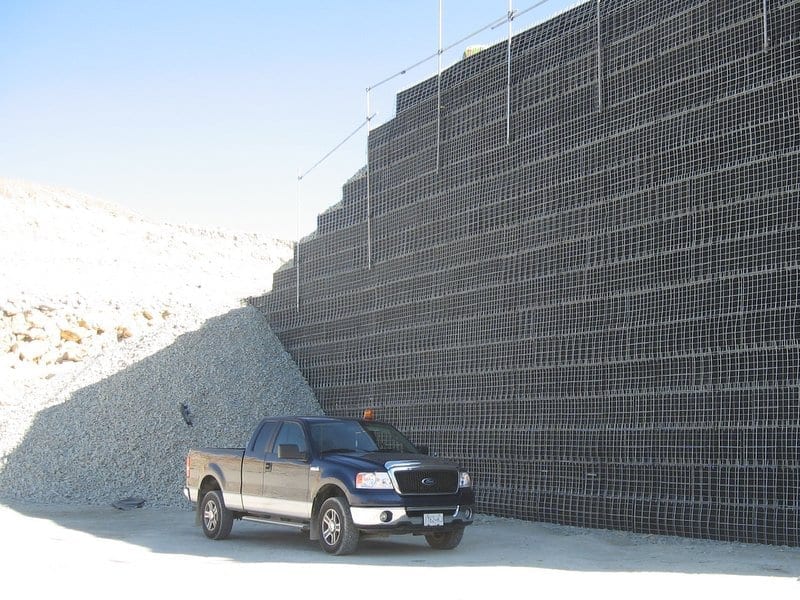

MSE Structural Walls

Quick and easy MSE walls for permanent or temporary applications.
Image of MSE Structural Walls
Recommended for :
  • Crusher Walls and Ramps
  • Retaining Walls, Headwalls and Wingwalls
  • Bridge Abutments
  • Grade Separations
  • Economical system for retaining walls, steepened slopes and erosion control
  • Heavy-duty, black or galvanized steel wire interlocking wall and mat construction
  • Can handle extreme surcharge loads
  • Wall heights can exceed 30 m (100')
  • Height increments are 610 mm (2')
  • Adapts to curves, angles and steps
  • Complement to structural plate or bridge structures
  • Time-saving Grid-Strip Soil Reinforcement System made from durable galvanized steel
  • Available finishes: natural stone, temporary (fabric), shotcrete or vegetated
  • Most cost-effective and easy way to construct headwall option for structural plate bridges
  • Permanent or temporary applications
Recommended for :
  • Crusher Walls and Ramps
  • Retaining Walls, Headwalls and Wingwalls
  • Bridge Abutments
  • Grade Separations

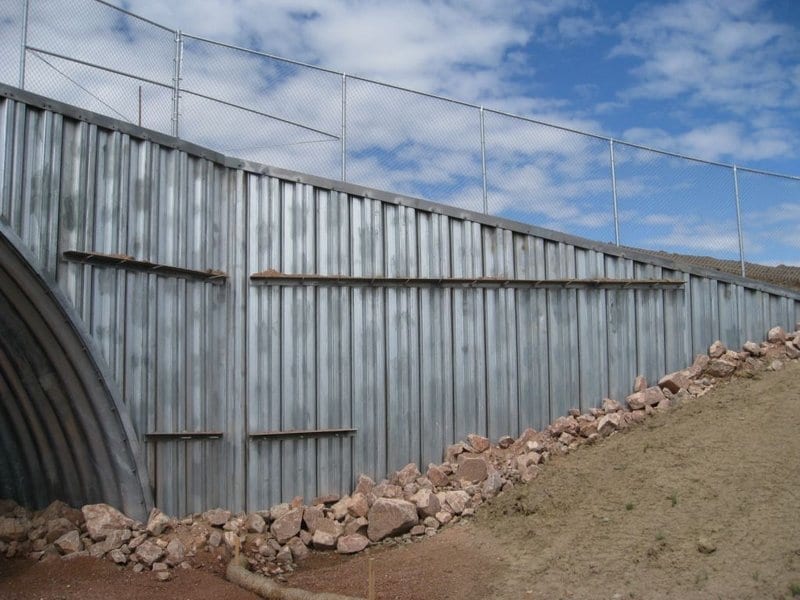

Bolt-A-Bin Walls

Cost-effective, strong and versatile for mine site cribwalls or bridge abutments.
Image of Bolt-A-Bin Walls
Recommended for :
  • Bridge Abutments
  • Reclaiming or Stabilizing Slopes
  • Protecting Shores
  • Preventing Erosion
  • Road Widening
  • Grade Separations
  • Headwalls and Wingwalls
  • Loading Platforms or Ramps
  • Wharves
  • Barricades
  • Cut-Off Walls
  • Blast Walls
  • Strong, flexible and cost-effective
  • Lightweight, easy to install and ideal for remote areas
  • Galvanized and Aluminized Type 2 steel construction
  • Versatile size range of 1.2 m (4') to 8.5 m (28') in height, in 3 m (10') increments in length
  • Full design and engineering support
Recommended for :
  • Bridge Abutments
  • Reclaiming or Stabilizing Slopes
  • Protecting Shores
  • Preventing Erosion
  • Road Widening
  • Grade Separations
  • Headwalls and Wingwalls
  • Loading Platforms or Ramps
  • Wharves
  • Barricades
  • Cut-Off Walls
  • Blast Walls

Steel Sheet Piling

Stronger and easier-to-drive piling wall solutions.
Image of Steel Sheet Piling
Recommended for :
  • Bridge and Culvert Headwalls
  • Diversion Structures
  • Irrigation Weirs
  • Trench Shoring
  • Toe Walls and Cut-Off Walls for Culverts or Concrete Boxes
  • Marine Retaining Walls
  • Erosion Prevention
  • Piling is roll-formed with a continuous, positive interlock
  • Wall heights can exceed 15.24 m (50')
  • Ships and installs easily with minimal site preparation
  • 7, 8, 10 and 12 gauges available
  • Available in Hot-Rolled, Galvanized or Aluminized Type 2 Steel
  • Many standard retaining wall accessories are available: fabricated corners, deadman anchors, tie rods, fasteners, angle caps, and rub rails
Recommended for :
  • Bridge and Culvert Headwalls
  • Diversion Structures
  • Irrigation Weirs
  • Trench Shoring
  • Toe Walls and Cut-Off Walls for Culverts or Concrete Boxes
  • Marine Retaining Walls
  • Erosion Prevention

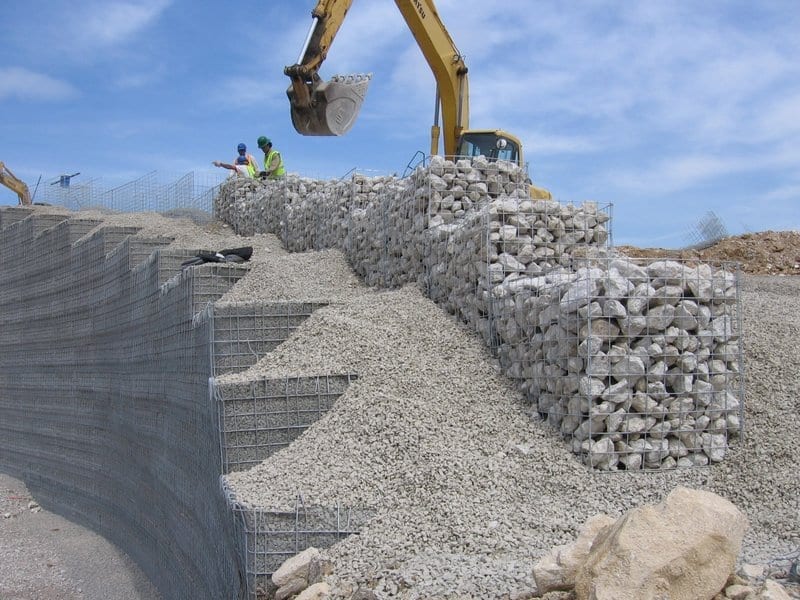

Gabion Basket Walls

Quick and ready-to-assemble for gabion retaining wall projects.
Image of Gabion Basket Walls
Recommended for :
  • Safety Barriers
  • Steepened Slopes
  • Erosion Control
  • Strong and lightweight galvanized steel welded 83 mm (3.26") wire mesh that holds face alignment with machine filling
  • Pre-assembled units fastened with galvanized steel spirals
  • No field flattening, folding or bending
  • Standard units of up to 6 m (19.6') x 2 m (6.56') x 1 m (3.28')
  • Can be field cut without losing strength
Recommended for :
  • Safety Barriers
  • Steepened Slopes
  • Erosion Control

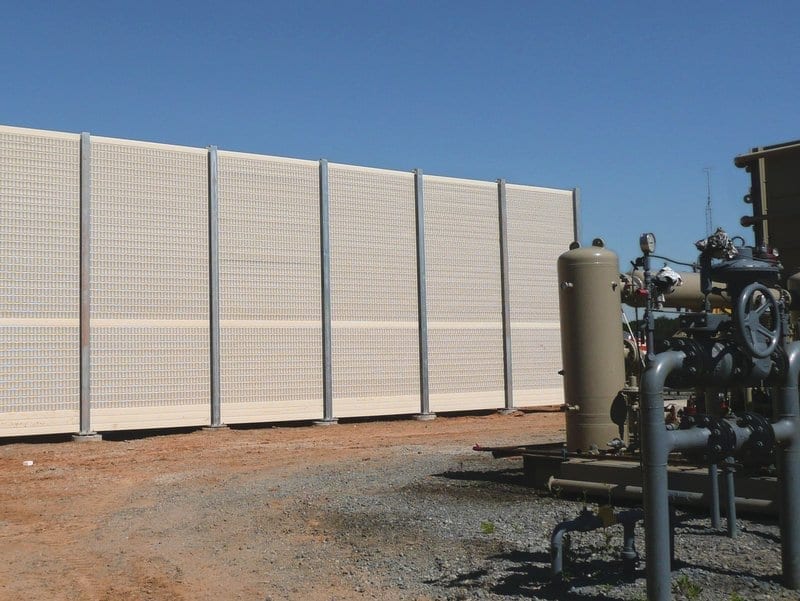

Sound Barrier Walls

AIL Sound Walls

Lightweight and easy-to-install PVC sound barrier wall systems.
Image of AIL Sound Walls
Recommended for :
  • Mine/Quarry Perimeters
  • Haul Road Fencing
  • Crusher Fencing
  • Equipment Screens
  • Lightweight and durable PVC construction
  • Interlocking tongue and groove connection
  • Quick and easy to install
  • Lower installed costs
  • Sustainable and maintenance-free
  • Will not rust, rot or stain
  • Impervious to rain, snow, ice and sleet
  • Wind load tested for hurricane-force winds
  • Meets accelerated test requirements for durability
  • Designed to meet applicable design codes (AASHTO, IBC, CSA)
  • Variety of colours, textures and options
  • Adaptable to different footing systems
  • Silent Protector (Absorptive); Filled with acoustical mineral wool batts; Absorbs unwanted noise; Noise Reduction Coefficient (NRC) rating of 0.95; Silent Protector Plus offers Sound Transmission Class (STC) 39 and NRC 0.90, ask for details
  • Tuf-Barrier (Reflective); Blocks and reflects unwanted noise; Easy-off graffiti and tagging; Textured finishes available
  • Silent Protector XL and Tuf-Barrier XL are available in lengths of up to 16’ for fewer posts/footings and even lower installed costs
Recommended for :
  • Mine/Quarry Perimeters
  • Haul Road Fencing
  • Crusher Fencing
  • Equipment Screens

Specialty Products

Guiderail Systems

Strong, highly-visible and suitable for a wide variety of applications.
Image of Guiderail Systems
Recommended for :
  • Safety Barriers
  • Bridge Approaches and Railings
  • Made from heavy-duty 2.5 mm hot-dip-galvanized steel
  • Immediate shipping in convenient component form
  • Easily assembled by two-person crew
  • No special equipment or training required for installation
  • Manufactured to highest specifications
  • All components are galvanized for long service life
  • Manufactured to AASHTO M180-78 specifications
Recommended for :
  • Safety Barriers
  • Bridge Approaches and Railings

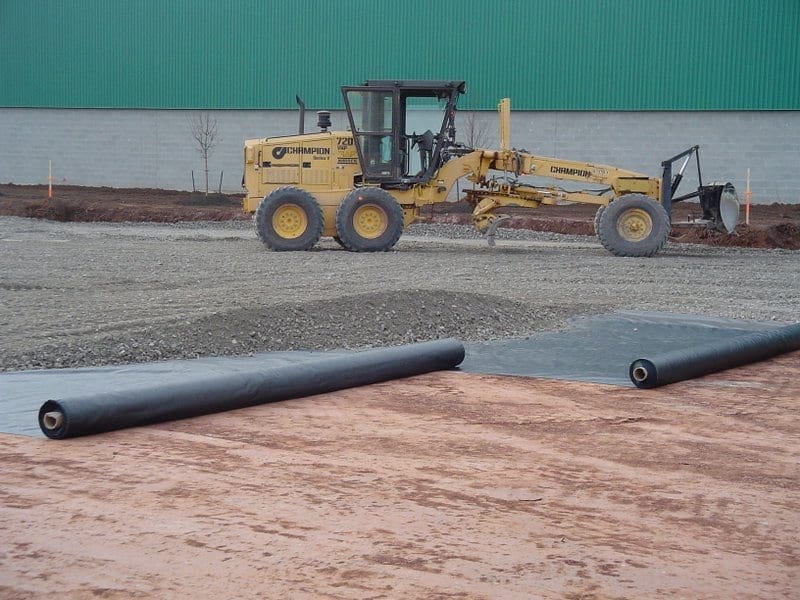

Geotextiles

Image of Geotextiles
Recommended for :
  • Silt Fencing
  • Erosion Control
  • Environmental Protection
  • Woven and non-woven fabrics
  • Soil stabilization and reinforcement
Recommended for :
  • Silt Fencing
  • Erosion Control
  • Environmental Protection

The AIL Group of Companies
